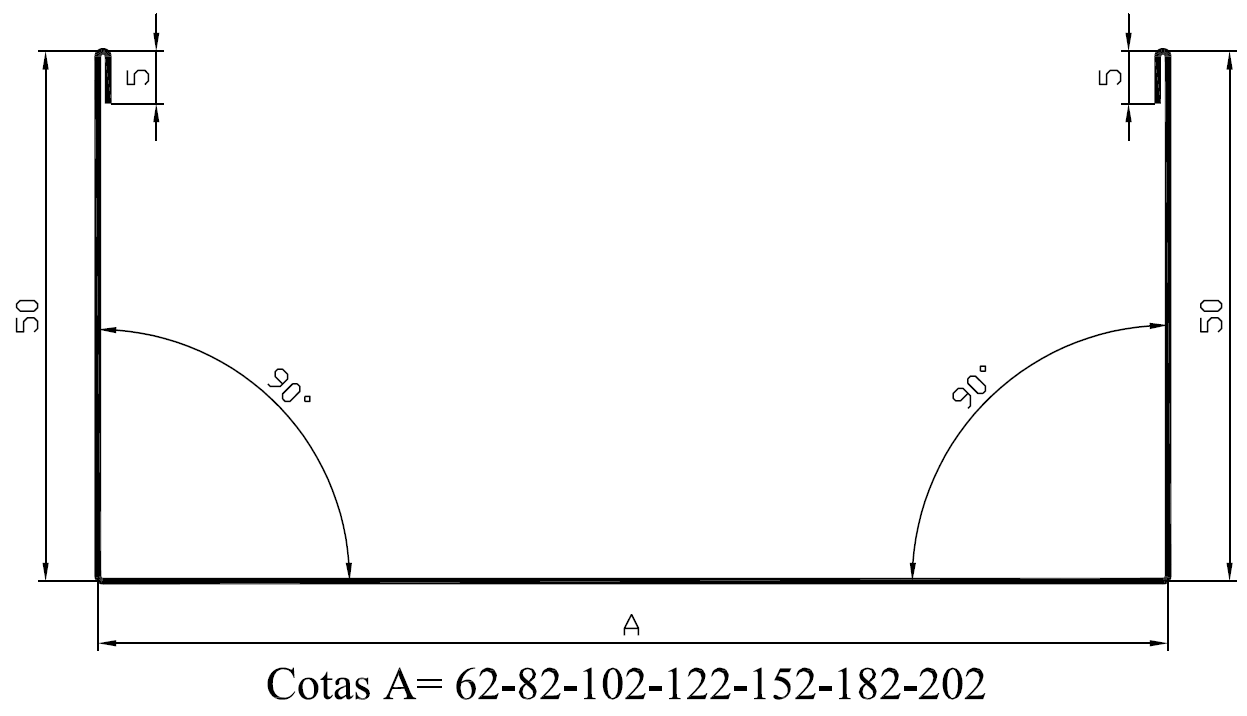

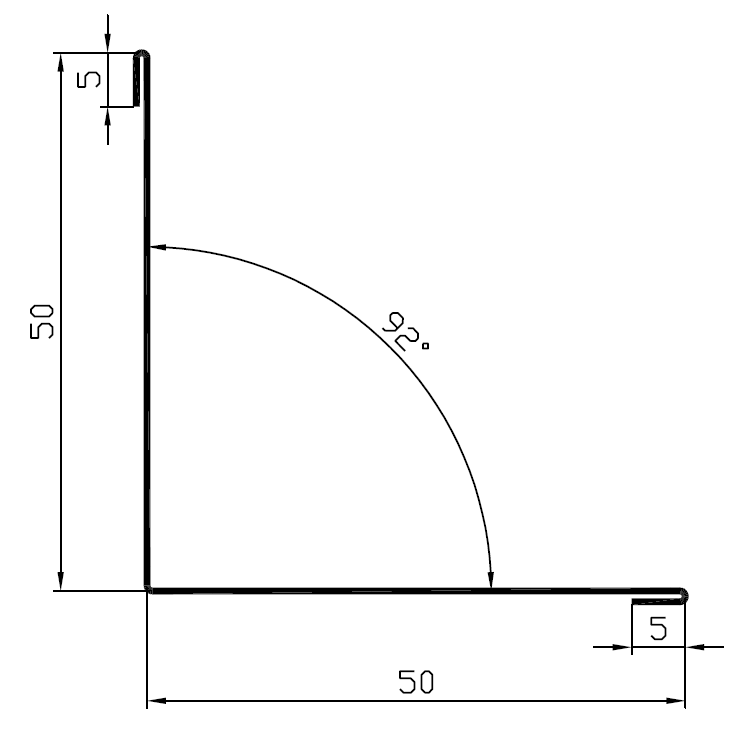

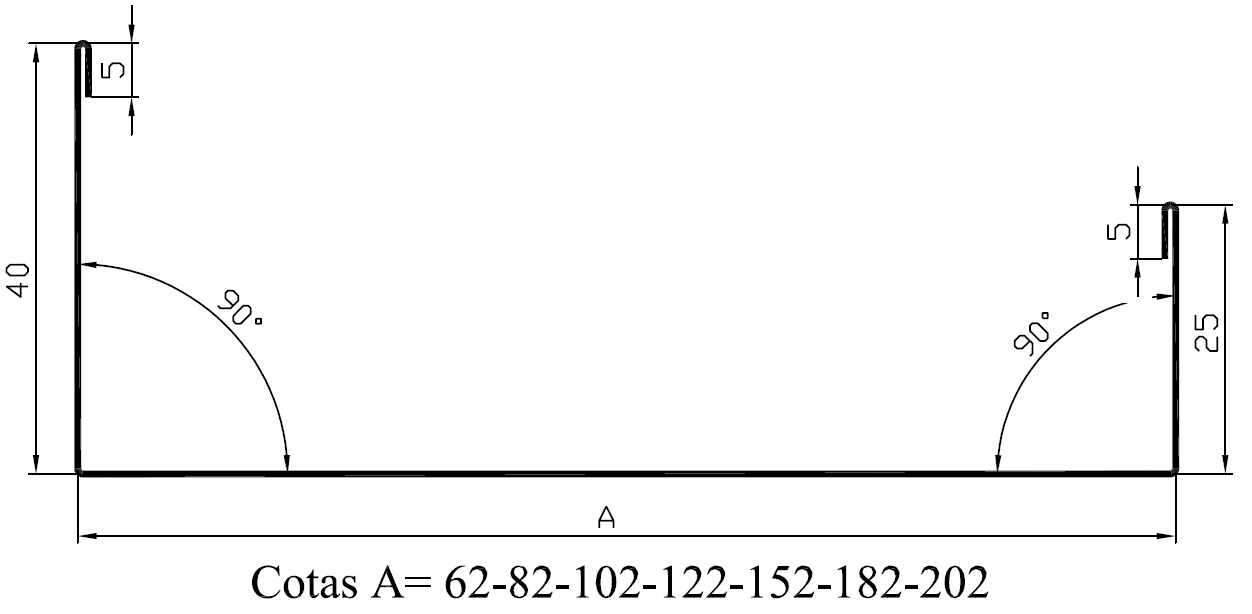

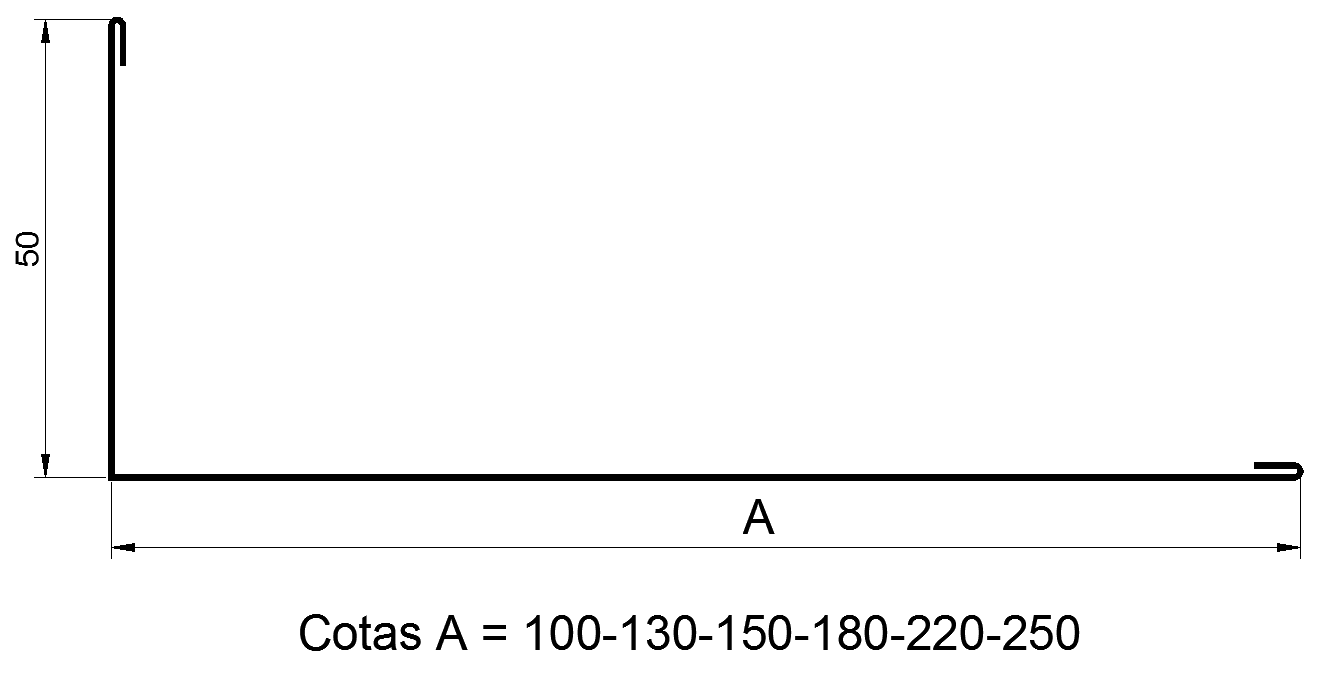

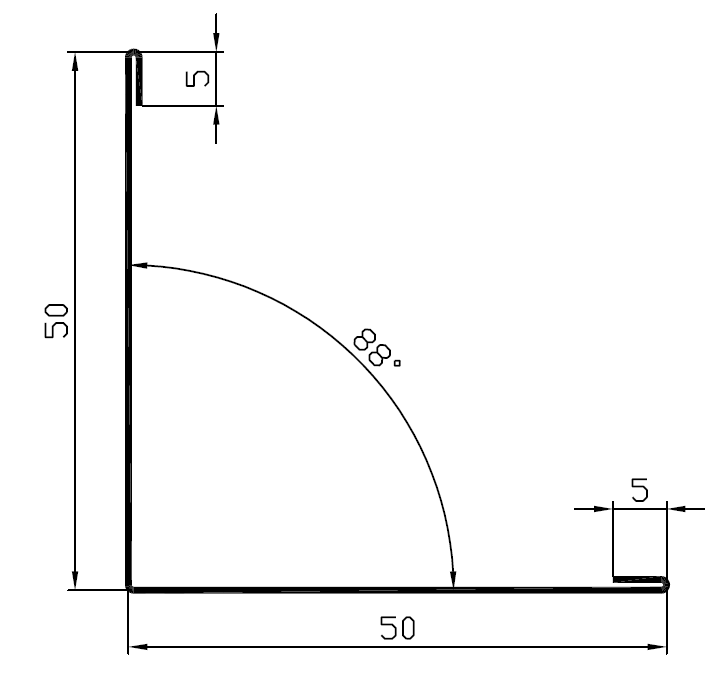

REMATTERY: Profiles built in 0.6 mm thick sheet steel and with the same terminations as the panels, that is, in white lacquered steel sheet, color lacquered, stainless steel, etc.

STANDARD REMATTERY: In order to offer the best possible price, ALPHA PANEL has developed a standard exploded view of the auctions needed to mount panels for all thicknesses. All the edges have flat edges to avoid oxidation problems. In addition to the standard finishes, any other type of finish can be supplied.

---

CEILING SUSPENSION PROFILES

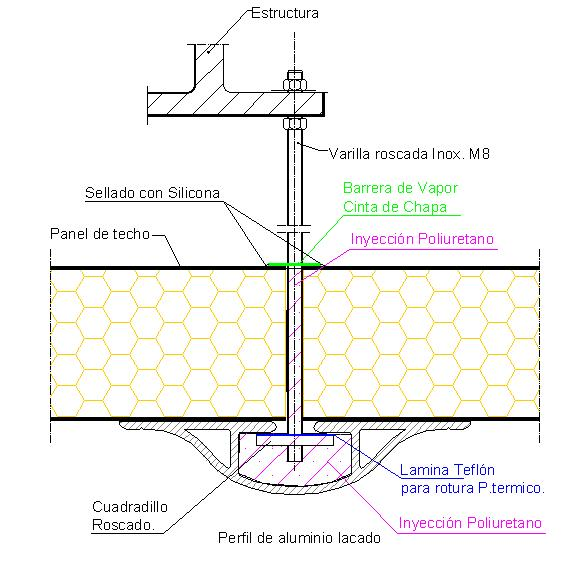

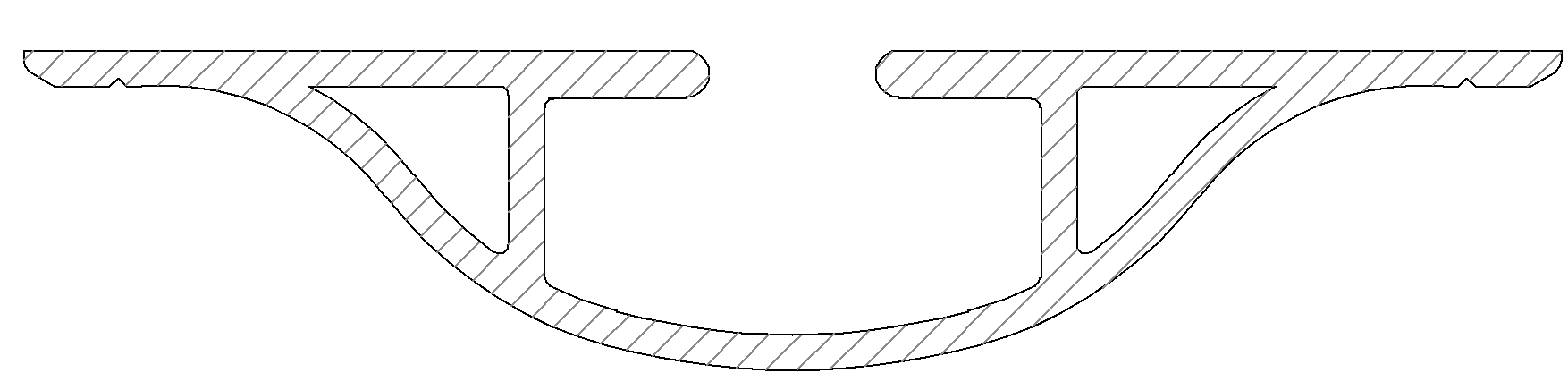

APPLICATION DETAIL: Suspension of ceiling panels to structure using Omega profile. The system consists of Omega profile + Square + M8 threaded rod in stainless steel or galvanized.

---

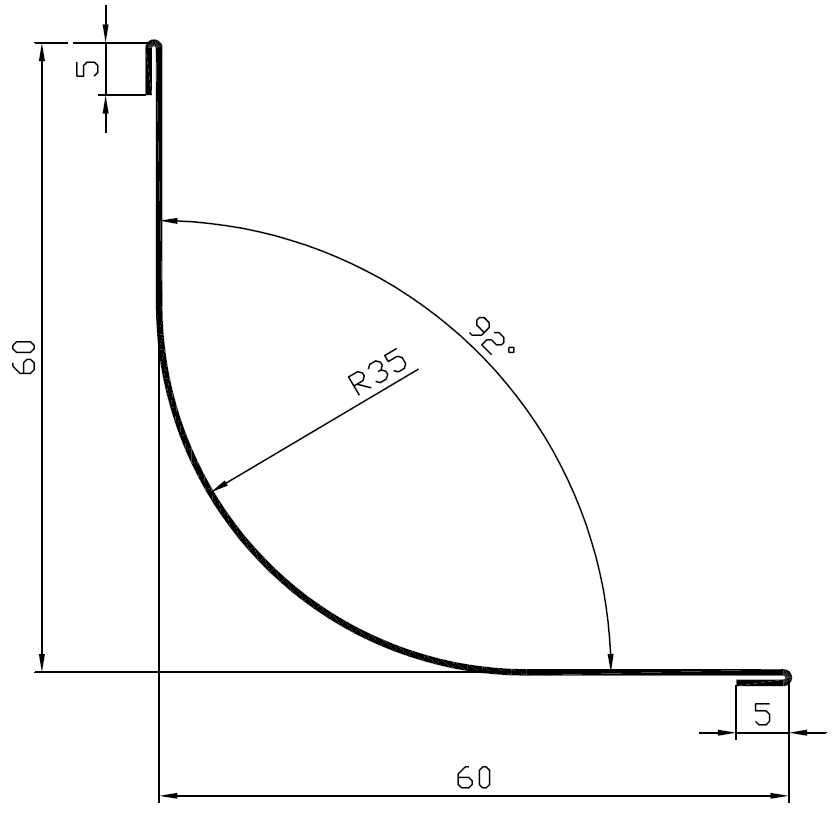

APPLICATION EXAMPLES CONCAVE PROFILE BUILT IN STEEL PLATE

Concave profile made of 0.5 or 0.6 mm thick sheet steel, possibility of manufacturing in any type of sheet steel, be it white / colored lacquered sheet steel, stainless steel, sheet steel coated with PVC Food Safe, etc.

Concave profiles are manufactured with flat edges to prevent oxidation of the edge of the sheet. They are installed by means of a rivet or sheet metal screw, it is recommended to seal the joints between the profile and the panel or floor using silicone fungicides.

This profile guarantees the TOTAL tightness of the finish as well as a sanitary finish with very high mechanical resistance.

As it is built with the same sheet metal as the panel, it practically disappears visually from the installation with a much more aesthetic and sanitary result than with the standard PVC finishes, the latter come off due to changes in temperature and also discolor over time; our concave profile is unalterable over time.
